Pin Fin Heat Sinks: A Technical Guide for Engineers
- Jewlz Technologies
- 1 day ago
- 8 min read
What is a pin fin heat sink and how does it work?
A pin fin heat sink is a base plate with an array of pins, typically cylindrical or conical, that project outward to dramatically increase the surface area available for heat transfer. Heat conducts from the electronic component through the base plate and into the pins, where convection carries it away to the surrounding air. The key operational advantage over plate fin designs is omnidirectional airflow: air can approach the array from any direction, which matters enormously in enclosures where fan orientation is fixed or variable.
The mechanism behind the thermal performance gain is boundary layer disruption. As airflow moves past each pin, it separates and reattaches, preventing the thick stagnant boundary layer that limits convection on smooth surfaces. Pin fins disrupt thermal boundary layers by inducing turbulence, and at higher Reynolds numbers they generate horseshoe vortices and Kármán vortex streets that actively mix the cooler ambient air with the heated air near the surface.
Base plate: conducts heat from the device footprint uniformly into the pin array
Pin geometry: cylindrical pins are most common; conical and streamlined variants trade off pressure drop against heat transfer
Materials: aluminum for weight and cost efficiency; copper where maximum conductivity is needed
Airflow: omnidirectional, unlike plate fins that require axial flow aligned with the channels
Convection mechanism: turbulence-driven boundary layer disruption at each pin surface
Table of Contents

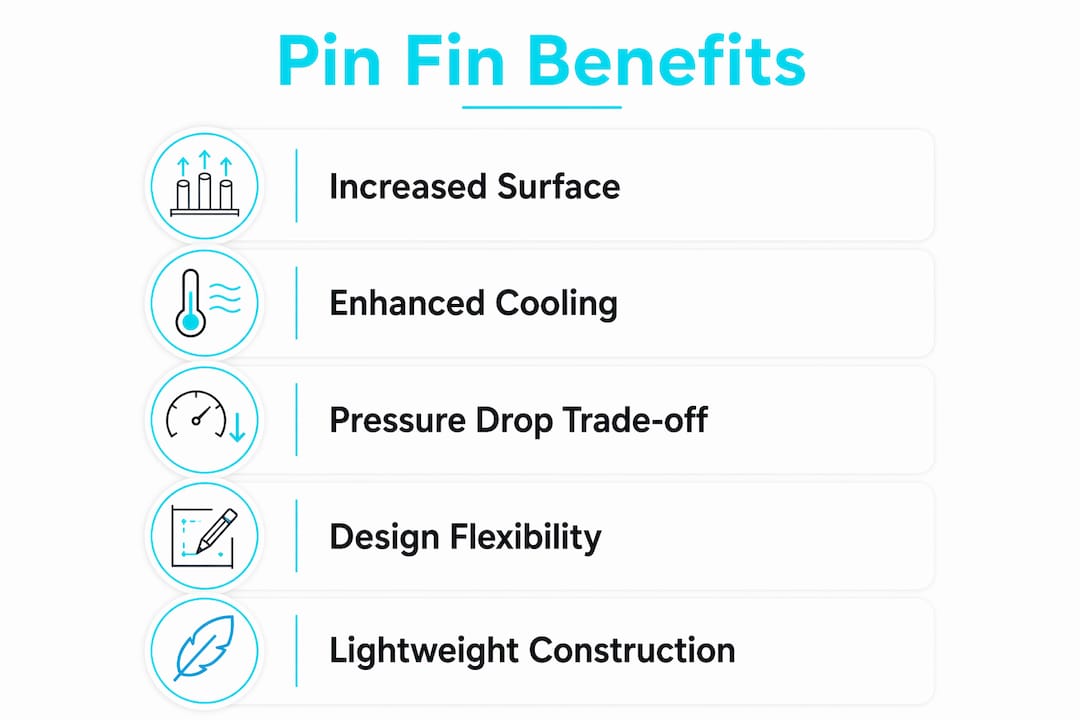

Key features and benefits of pin fin heat sinks
The defining benefit is surface area. A dense pin array packs far more convective surface into a given footprint than a plate fin of equivalent base dimensions. That surface area advantage compounds when airflow is turbulent or multidirectional, conditions where plate fins lose efficiency because their channels require aligned flow.
Pin fins generate vortex structures including horseshoe vortices and Kármán vortex streets that enhance turbulent mixing across the entire array, not just at the leading edge. This makes them particularly effective in high-heat-flux electronics where localized hot spots need aggressive cooling.
High surface area density: more convective area per unit volume than plate fins
Multidirectional cooling: effective regardless of airflow angle, critical in compact enclosures
Compact footprint: fits constrained PCB layouts and chassis designs
Material flexibility: aluminum alloys (6061, 6063) for most applications; copper for extreme thermal loads
Lower thermal resistance under turbulent flow: boundary layer regeneration at each pin row maintains heat transfer coefficient along the array length
Pro Tip: Increasing pin density raises heat transfer but also raises pressure drop. Before specifying a denser array, confirm the system fan can deliver the required flow against the higher resistance. Balancing thermal performance with fan power budget is the most common design oversight in pin fin specification.
Standard dimensions and common design variations
Typical pin fin heat sinks for electronics span a wide range of sizes, from small CPU-scale packages to large power module assemblies. The table below captures the dimensional ranges engineers encounter most often.
Parameter | Typical Range | Notes |
Base plate size | 25 mm × 25 mm to 200 mm × 200 mm | Matched to device footprint |
Base plate thickness | 2 mm–6 mm | Thicker bases reduce spreading resistance |
Pin height | 5 mm–40 mm | Taller pins increase surface area; raise pressure drop |
Pin diameter | 1 mm–5 mm | Smaller pins increase area density; harder to manufacture |
Pin pitch (center-to-center) | 2 mm–10 mm | Tighter pitch increases area but restricts airflow |

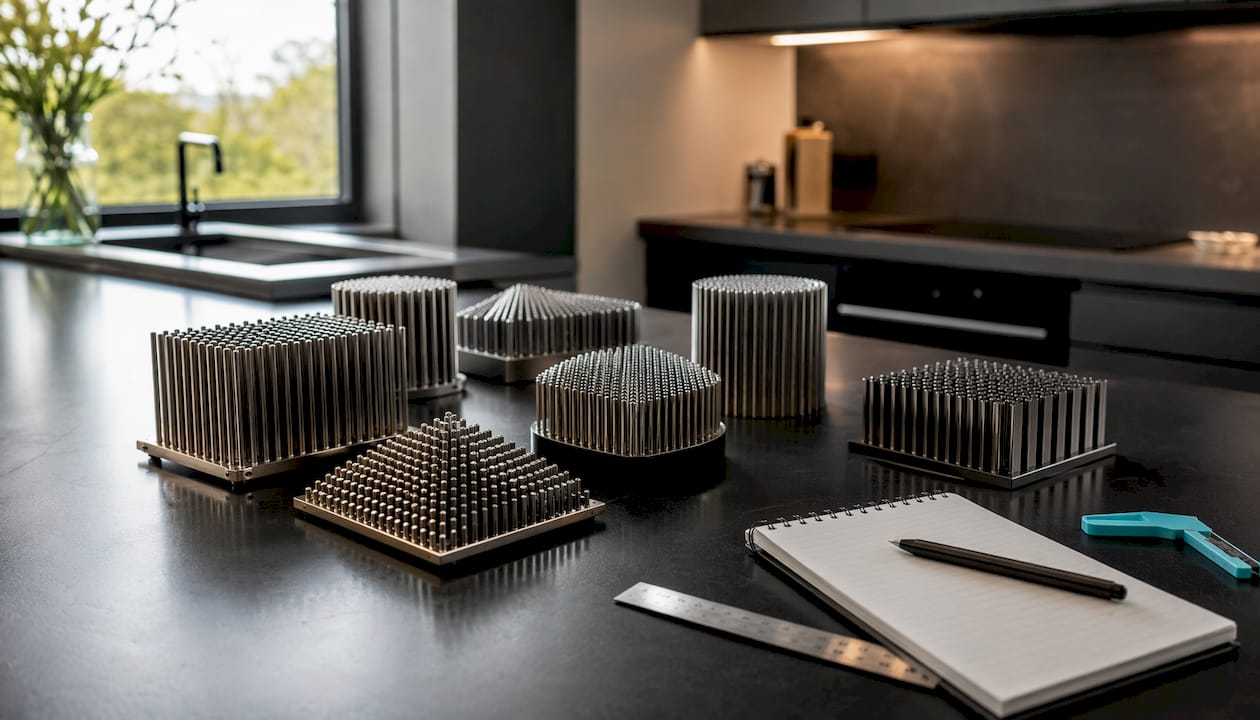

Pin shape | Cylindrical, conical, diamond, streamlined | |
Array layout | In-line, staggered, custom-optimized | Staggered arrays generally outperform in-line for convection |
Streamlined pin shapes maximize convective heat transfer; diamond shapes minimize flow resistance. The right choice depends on whether the system is fan-power-limited or thermally limited. Staggered arrays force airflow to interact with more pins per unit length, which consistently outperforms in-line layouts in convective efficiency, though at the cost of higher pressure drop.
Where pin fin heat sinks are used in electronics and industrial systems
Pin fin heat sinks appear wherever power density is high and space is constrained. Optimizing pin fin arrays prevents thermal runaway and maintains reliability in devices operating at intense thermal loads.
CPUs and GPUs: desktop and server processors routinely use pin fin arrays to handle heat fluxes above 50 W/cm²
Gaming laptops and compact PCs: omnidirectional airflow compatibility suits the mixed-flow environments inside thin chassis
Power electronics: IGBT modules, motor drives, and power converters in industrial equipment rely on pin fin designs for their compact thermal resistance
Telecom infrastructure: base station amplifiers and switching equipment use pin fin heat sinks where forced convection is limited
EV battery packs and inverters: thermal management for EV batteries increasingly incorporates pin fin structures to handle the localized heat flux from cell clusters
LED lighting modules: high-power LED arrays generate concentrated heat that pin fin geometries dissipate efficiently in compact luminaire housings
Renewable energy systems: solar inverters and wind turbine converters operate in variable ambient conditions where omnidirectional cooling is a practical necessity
How pin fin designs outperform plate fins and other geometries
The core advantage over plate fins is airflow flexibility. Plate fin channels require flow to enter axially; misaligned flow drops their efficiency sharply. A pin array handles cross-flow, impingement, and mixed-direction airflow without significant performance loss.
Greater surface area per volume: pin arrays achieve higher area density than equivalent plate fin configurations
Omnidirectional compatibility: no preferred flow direction, unlike plate fins or folded fin arrays
Turbulence-driven performance: boundary layer regeneration between pin rows sustains high local heat transfer coefficients across the full array length
Compact form factor: pin arrays fit enclosures where plate fins cannot be oriented correctly
Customization for local heat flux: pin height, diameter, and pitch can be varied across the array to target hot spots, something plate fins cannot do without complex machining
Advanced design considerations and simulation for pin fin arrays
Getting the most from a pin fin array requires moving beyond uniform geometry. Non-uniform pin length and longitudinal pitch with longer pins near the heat source and shorter downstream pitch yields better hydrothermal performance than any uniform array of equivalent material. The logic is straightforward: boundary layer development is fastest near the inlet, so that is where the highest surface area does the most work.
Perforated or notched pin designs can boost heat transfer by over 10% while cutting pin weight and fan power by up to 40%. Rectangular notched pins are the most practical option: they require no pre-processing of the pin blank, and the notch geometry is easy to optimize with CFD. Research from the University of Leeds confirms that notched perforations can boost heat transfer by over 10% while reducing pin weight and fan power by up to 40% compared to solid pin arrays.
Design Approach | Thermal Benefit | Trade-off |
Non-uniform pin length | Higher hydrothermal efficiency near inlet | More complex toolpaths |
Staggered array | Better convection than in-line | Higher pressure drop |
Rectangular notched pins | Over 10% heat transfer gain, up to 40% fan power reduction | Notch geometry must be optimized per application |
Irregular/perforated pins | Tailored local cooling, weight reduction | Requires CFD validation |
Streamlined pin shape | Maximum convective heat transfer | Higher manufacturing cost |
CFD simulation is not optional for these advanced geometries. The interaction between pin shape, array layout, and system-level airflow constraints produces results that analytical correlations cannot reliably predict. Future pin fin designs focus on irregular and perforated geometries that maximize heat transfer efficiency and reduce weight, which makes simulation tools central to the design process. Quality control of the resulting complex geometries benefits from 3D scanning inspection methods that verify pin dimensions and surface finish against design intent.
Jewlztech’s Thermalysis Toolkit models pin fin heat sinks with variable material properties across a wide temperature range, covering conduction through the base plate, convection from the pin surfaces, and radiation where relevant. Engineers can iterate geometry and airflow conditions without building physical prototypes for every design variant.
Pro Tip: Map the heat flux distribution across your device footprint before fixing pin geometry. Concentrating taller or denser pins over the highest-flux zones, then stepping down toward cooler regions, can cut peak junction temperature without increasing overall pressure drop.
Calculating heat transfer for pin fin heat sinks
The standard starting point is the fin efficiency equation. For a single cylindrical pin fin, the temperature distribution along the pin length follows:
θ(x) = θ_b × cosh[m(L − x)] / cosh(mL)
where θ is the local temperature excess above ambient, θ_b is the base temperature excess, L is pin length, and m = √(hP / kA_c), with h the convective coefficient, P the pin perimeter, k the material thermal conductivity, and A_c the pin cross-sectional area.
Fin efficiency η_f = tanh(mL) / (mL), and overall array efficiency η_o accounts for the fraction of base area covered by pins versus exposed base. Total heat dissipation from the array is:
Q = η_o × h × A_total × (T_base − T_ambient)
For array-level analysis, the Nusselt number correlation for pin fin arrays takes the form Nu = C × Re^m × Pr^n, with constants C, m, and n depending on array geometry (in-line vs. staggered), pin shape, and Reynolds number range. Staggered arrays typically carry higher C values than in-line configurations at the same Re. Pressure drop across the array is estimated using the Euler number Eu = ΔP / (ρ × u_max²), where u_max is the maximum velocity between pins. These equations give first-order estimates; heat transfer techniques for complex geometries or non-uniform arrays require CFD to capture vortex interactions and local boundary layer behavior accurately.
Jewlztech’s thermal simulation toolkit for pin fin design
Pin fin design involves enough interacting variables that spreadsheet estimates and handbook correlations only get you so far. The geometry, material, airflow, and boundary conditions all interact, and the gap between a first-pass estimate and an optimized design is often the difference between a product that passes thermal qualification and one that doesn’t.
Jewlztech’s Thermalysis Toolkit is an Excel-based engineering platform built for exactly this kind of iterative thermal work. It handles conduction, convection, and radiation in a single environment, supports variable material properties across a wide temperature range, and includes a built-in property database so you’re not hunting for aluminum alloy conductivity values mid-analysis. Engineers working on pin fin arrays can model the base plate spreading resistance, the pin-level convection, and the system-level thermal resistance in one tool, then adjust geometry and rerun without switching software environments. For teams that need CFD-level insight without a full CFD license, it’s a practical middle ground. Try the Thermalysis Toolkit and see how quickly a pin fin design iteration actually runs.
Key Takeaways
Pin fin heat sinks outperform plate fins in turbulent and multidirectional airflow because boundary layer regeneration at each pin row sustains high convective coefficients across the full array length.
Point | Details |
Omnidirectional airflow advantage | Pin arrays work in cross-flow and mixed-direction airflow where plate fins lose efficiency. |
Notched pins cut fan power | Rectangular notched pins can boost heat transfer by over 10% while reducing pin weight and fan power by up to 40% compared to solid pin arrays. |
Non-uniform arrays outperform uniform | Longer pins near the heat source with tighter downstream pitch yields better hydrothermal efficiency. |
Fin efficiency equations guide sizing | Use η_f = tanh(mL)/(mL) for first-order estimates; CFD is needed for complex or non-uniform geometries. |
Jewlztech Thermalysis Toolkit | Models conduction, convection, and radiation for pin fin arrays in a single Excel-based environment. |
