Interfacial thermal resistance (ITR) is the temperature drop that appears across a boundary between two materials for a given heat flux, arising because phonons and electrons scatter, mismatch, or simply fail to couple efficiently when they cross from one lattice into another. At room temperature, ITR for solid-solid interfaces typically falls in the 10⁻⁹ to 10⁻⁷ m²K/W range, a two-order-of-magnitude spread that reflects how much bonding quality and material pairing matter. Get this number wrong in a design and you underestimate hot spots in power electronics or misjudge the efficiency ceiling of a thermoelectric stack.
Also called Kapitza resistance or thermal boundary resistance, depending on context and field
Governs heat removal in stacked electronics, battery packs, and thin-film devices
Room-temperature range: roughly 10⁻⁹ to 10⁻⁷ m²K/W for solid interfaces
Key Takeaways
Interfacial thermal resistance depends more on interface chemistry and bonding quality than on bulk material properties, which is why measured values routinely diverge from AMM and DMM predictions.
Point | Details |
Room-temperature range | ITR for solid interfaces typically spans 10⁻⁹ to 10⁻⁷ m²K/W. |
Terminology | Kapitza resistance, thermal boundary resistance, and ITR describe the same physical phenomenon in different contexts. |
Models have limits | AMM suits smooth, cold interfaces; DMM suits rough, warmer ones; neither captures bonding chemistry well. |
Measurement needs cross-checks | TDTR, FDTR, and 3-omega each carry distinct error sources, so validating with two methods is best practice. |
Simulation and design support | The Thermalysis Toolkit from Jewlztech models interface effects alongside conduction, convection, and radiation in one workflow. |
Table of Contents
What Is Interfacial Thermal Resistance, Exactly?
Three terms get used almost interchangeably in the literature, and knowing when each applies saves you from misreading a paper. Kapitza resistance is the historical term, coined for the temperature jump observed at solid-liquid helium interfaces. Thermal boundary resistance is the general physics term for any solid-solid or solid-liquid junction. Interfacial thermal resistance is the broader engineering label, often used interchangeably with the other two in device-level work.
None of these are the same as thermal contact resistance (sometimes called constriction resistance), which comes from macroscopic non-contact, like air gaps between two rough machined surfaces pressed together. ITR is intrinsic to the interface itself, even for atomically bonded, defect-free junctions, because phonons and electrons genuinely scatter when crossing between dissimilar lattices.
The governing relation is simple: ΔT = R·q, where q is heat flux and R is the interfacial resistance. Researchers often flip this into boundary conductance, G = 1/R, since conductance (W/m²K) is easier to compare across measurement techniques and material systems.
Core Theoretical Models for Predicting ITR
Two classical models anchor most of the field, and both were built for idealized interfaces that rarely exist in a lab.
The Acoustic Mismatch Model (AMM) treats phonons as plane waves refracting across an interface, the same way light bends between media of different refractive index. It works reasonably well at cryogenic temperatures with atomically smooth, defect-free interfaces, where phonon wavelengths are long compared to any interface roughness. Above roughly 30 K, real surfaces scatter phonons too diffusely for AMM’s specular assumption to hold.
The Diffuse Mismatch Model (DMM) assumes the opposite: every phonon scatters diffusely at the interface and loses memory of its incoming direction, redistributing according to the density of available states on each side. DMM tends to handle rougher, higher-temperature interfaces better, but it ignores interface-specific chemistry entirely.
For metal interfaces, a two-temperature model becomes necessary because electrons and phonons can carry heat at different effective temperatures, and electron-phonon coupling within each metal, not just the interface itself, controls part of the resistance.
Model | Best regime | Key weakness |
AMM | Low temperature, smooth interfaces | Fails above ~30K, ignores roughness |
DMM | Rougher interfaces, higher temperature | Ignores bonding chemistry, interlayers |
Two-temperature | Metal-metal, metal-nonmetal junctions | Requires separate electron/phonon coupling data |
Both AMM and DMM routinely diverge from measured values because they omit inelastic phonon scattering, interlayer chemistry, and bonding-specific effects that dominate at real, imperfect interfaces. This isn’t a minor footnote. Classical Kapitza studies on solid-helium interfaces found measured resistance running an order of magnitude below what acoustic-impedance theory predicted, a gap that has never fully closed for many material systems.
AMM: specular scattering, best below 30K
DMM: diffuse scattering, best for rough or bonded interfaces
Neither model captures interfacial chemistry, interlayers, or inelastic scattering well
Pro Tip: Don’t use AMM or DMM alone for quantitative design specs on a real fabricated device. Treat them as bounding estimates, then anchor your actual number to a measured value or a molecular dynamics simulation that includes the real interface structure.
Computational Methods for Simulating Interfacial Resistance
When analytic models fall short, researchers turn to atomistic simulation, and the method choice depends heavily on what you actually need to know about the interface.
Molecular dynamics (MD) simulations, particularly non-equilibrium MD, directly compute a temperature gradient across a modeled interface and extract boundary conductance from the resulting profile. MD captures anharmonicity and finite-temperature effects naturally, but system-size limits and the classical treatment of atoms can distort results at cryogenic temperatures where quantum effects dominate.
Lattice dynamics and phonon transport calculations give mode-resolved, spectral information (which phonon frequencies carry the most heat across the boundary) that MD often can’t isolate cleanly.
Atomistic Green’s function methods compute transmission coefficients phonon-mode by phonon-mode across an interface, offering the cleanest spectral resolution but usually assuming harmonic, elastic scattering only.
Boltzmann transport equation (BTE) solvers scale better to device-level geometries and longer length scales but require accurate interface transmission inputs from one of the atomistic methods above.
Before trusting any simulated number:
Check that system size exceeds the phonon mean free path relevant to the material
Confirm the interlayer or bonding model matches known fabrication chemistry
Match simulated temperature to the experimental measurement condition
Compare spectral predictions against any available frequency-resolved experimental data

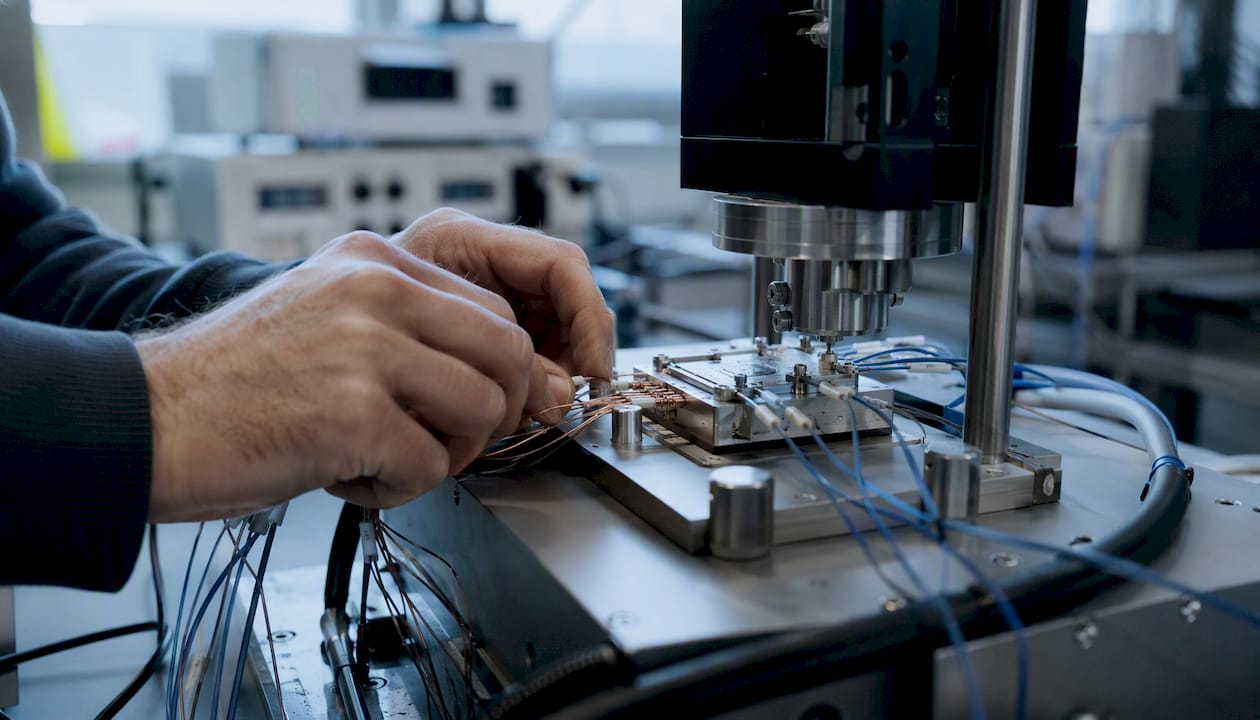

How Researchers Measure Interfacial Thermal Resistance
Experimental technique choice depends on sample geometry, the temperature range of interest, and whether you need absolute resistance or just relative comparisons across a sample set.
Time-domain thermoreflectance (TDTR) and frequency-domain thermoreflectance (FDTR) are the workhorses for thin-film and nanoscale interfaces. Both deposit a metal transducer (usually aluminum) on the sample surface, heat it with a pump laser pulse, and track surface temperature decay optically through reflectance changes. TDTR resolves picosecond to nanosecond timescales; FDTR sweeps modulation frequency instead of delay time and is often faster to implement with comparable accuracy.
The 3-omega method uses a thin metal line as both heater and thermometer, driven at frequency ω while measuring the third-harmonic voltage response, and works well for bulk and moderately thick film samples.
Thermal bridge measurements suspend a sample between two thermal reservoirs and are common for one-dimensional nanostructures like nanowires and nanotubes. Electron-beam self-heating techniques use a focused electron beam to locally heat a nanoscale feature, useful when physical contact for a transducer isn’t practical.
Technique | Typical scale | Main error source |
TDTR | Thin films, ps-ns timescale | Transducer thermal properties, interlayer assumptions |
FDTR | Thin films, frequency-domain | Phase lag calibration, substrate coupling |
3-omega | Bulk to thick films | Line geometry, substrate heat loss |
Thermal bridge | 1D nanostructures | Contact resistance at bridge supports |
Electron-beam self-heating | Individual nanostructures | Beam-induced damage, absolute calibration |
Most of these techniques directly report boundary conductance G rather than resistance R, since fitting the thermal model to measured decay curves naturally solves for conductance first. The 2022 Reviews of Modern Physics survey documents each method’s characteristic error budget in detail, and cross-checking two independent techniques on the same sample remains the most reliable way to catch a systematic artifact.
Transducer thermal conductivity uncertainty often dominates TDTR/FDTR error budgets
Surface roughness and native oxide layers are the most common unreported artifacts
Reporting both fitted G and its confidence interval is standard for reputable publications
Pro Tip: Always report the transducer material, thickness, and assumed thermal conductivity alongside your fitted conductance value. Reviewers and future researchers trying to reproduce your number need that information, and its absence is the single most common gap in published ITR data.
Typical Values and What Shifts Them
Material pairing sets the order of magnitude before anything else does. Metal-metal interfaces, where electrons dominate transport on both sides, tend to show the lowest resistance and highest conductance. Metal-nonmetal junctions introduce an electron-to-phonon handoff that adds resistance. Nonmetal-nonmetal (phonon-phonon) interfaces span the widest range depending on how well the two phonon spectra overlap.
Interface type | Relative ITR | Dominant carrier |
Metal-metal | Lowest | Electrons on both sides |
Metal-nonmetal | Moderate to high | Electron-phonon handoff |
Nonmetal-nonmetal | Widest range | Phonon-phonon coupling |
Across most solid interfaces at room temperature, values cluster in that 10⁻⁹ to 10⁻⁷ m²K/W band, and temperature dependence typically runs downward as temperature rises, since higher-frequency phonon modes become available to carry heat across the boundary. Exceptions show up when interfacial defects or weak van der Waals bonding introduce a resistance floor that temperature alone can’t overcome.
Interlayers and adhesion chemistry can shift ITR by an order of magnitude on their own. A native oxide, a few nanometers of adhesion-promoting metal, or even surface roughness at the nanometer scale changes phonon scattering pathways enough to swing measured conductance well outside what a clean-interface simulation would predict.
A Practical Workflow for Measuring and Modeling ITR
Producing a defensible ITR number, one that survives peer review or an engineering design audit, follows a fairly consistent sequence regardless of which technique you use.
Select and characterize the sample: confirm surface roughness, cleanliness, and any native oxide layer before deposition
Deposit the transducer (for TDTR/FDTR) with controlled thickness, and measure its actual thermal properties rather than assuming literature values
Run a calibration measurement on a known reference sample to validate the instrument’s absolute accuracy
Repeat measurements across multiple spots and multiple samples to quantify repeatability, not just single-shot precision
Fit the thermal model to the decay or frequency-response data, running a sensitivity analysis on assumed parameters like transducer conductivity and interlayer thickness
Quantify uncertainty explicitly rather than reporting a bare point value
For simulation validation, match the modeled temperature to the experimental condition, include any known interlayer in the atomistic model rather than assuming a pristine bonded interface, and state every assumption in the methods section so another researcher can reproduce the comparison.
Pro Tip: Interfacial contamination from ambient exposure between sample prep and measurement is an underreported error source. Minimize the delay between surface preparation and transducer deposition, and note that delay explicitly in your methods.
Where Interfacial Resistance Actually Changes Device Performance

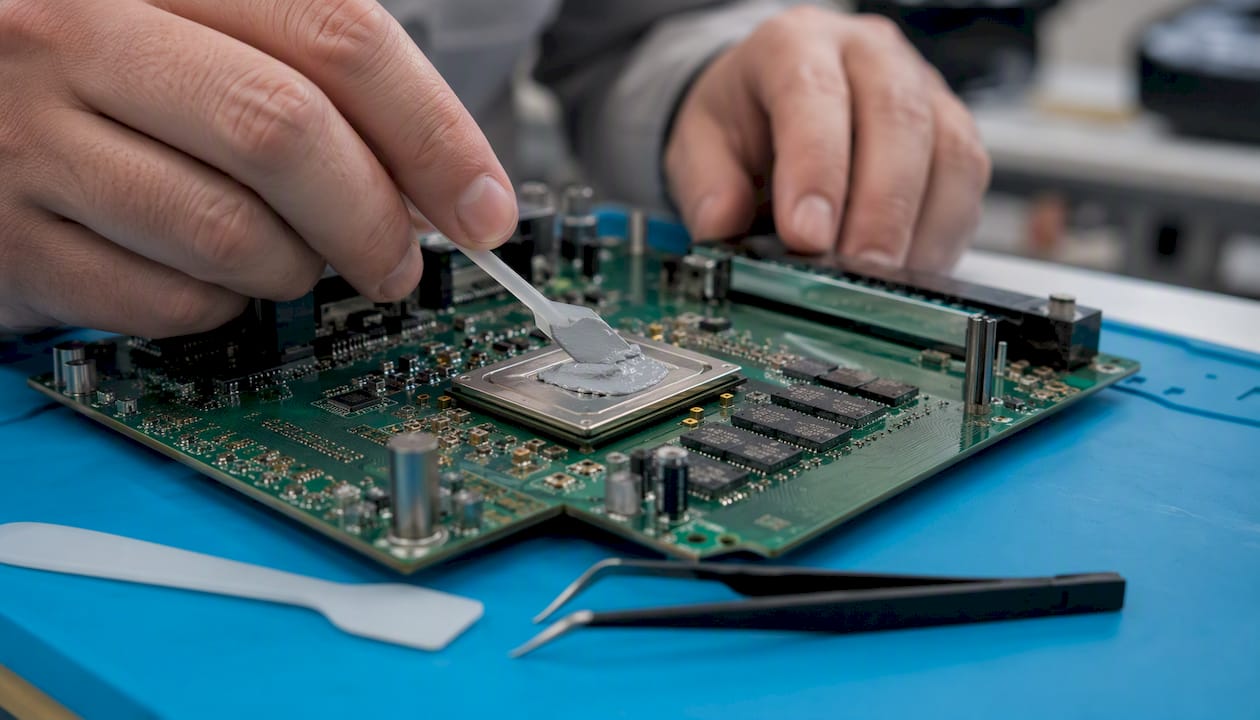

High-power electronics, LED and photonic stacks, battery electrodes, and thermoelectric modules all live or die by interface quality. In power electronics, ITR at the die-to-substrate bond often rivals bulk material resistance as the limiting factor in heat removal, a problem covered in more depth in Jewlztech’s guide to active cooling systems.
Application | Design goal | Common strategy |
Power electronics | Minimize ITR | Interlayer engineering, chemical bonding |
Thermoelectrics | Sometimes maximize ITR | Nanostructuring for phonon blocking |
Battery packs | Minimize ITR | Surface treatment, thermal interface materials |
Engineers usually want ITR minimized, using surface treatments, chemical bonding, or engineered interlayers to close the gap. Thermoelectric device design is the notable exception: deliberately raising phonon scattering at interfaces while preserving electrical conductivity is a core strategy for boosting efficiency, since blocking phonons without blocking electrons improves the thermoelectric figure of merit.
What’s Changing in ITR Research Right Now
The field’s biggest recent shift is data-driven. A compiled dataset spanning 1,318 data points from 87 papers, along with descriptors for 298 materials, now supports machine-learning predictions across more than 80,000 potential material pairings, cutting the need to run a full atomistic simulation for every new combination.
The persistent gap isn’t a lack of models. It’s that AMM, DMM, and even most MD simulations still omit inelastic phonon scattering, interfacial chemical bonding states, and measurement standardization gaps that make cross-study comparison difficult.
Descriptor-based ML models now predict ITR from composition and structure without full simulation
Inelastic scattering and bonding chemistry remain the biggest unresolved physics gaps
Combined experiment-simulation campaigns are increasingly the standard for credible new material systems
What I’d Prioritize If I Were Running This Research
Rigorous sample prep beats model sophistication almost every time. I’ve seen more disagreement between papers trace back to an uncharacterized interlayer or an unreported oxide than to any real limitation in AMM versus DMM. Cross-validating TDTR against FDTR or a second independent technique, and reporting every assumption plainly, does more for the field’s credibility than another elegant simulation.
Model It Yourself With the Thermalysis Toolkit
Reading about AMM, DMM, and boundary conductance only gets you so far when you actually need a number for a real device stack. The Thermalysis Toolkit handles conduction, convection, and radiation calculations with variable material properties and a built-in property database, so you can model interface effects alongside the rest of your thermal path instead of treating them as a separate calculation.
The toolkit runs as a downloadable Excel-based tool, which means no new software environment to learn before your next deadline. Try the free features first to see how it handles your material pairing, then move to the full subscription toolkit when you need the deeper simulation capability for pressure vessel or CFD work.
Frequently Asked Questions
Is interfacial thermal resistance the same as Kapitza resistance? Yes, in practice. Kapitza resistance is the historical name from solid-helium interface studies, while interfacial thermal resistance and thermal boundary resistance are the general terms used across modern solid-state and device research.
How does ITR differ from thermal contact resistance? Thermal contact resistance comes from macroscopic non-contact between rough, pressed-together surfaces, while ITR exists even at an atomically bonded, defect-free junction because phonons and electrons scatter crossing between dissimilar materials.
Why do AMM and DMM predictions often disagree with measured values? Both models omit real-world physics like inelastic phonon scattering, interfacial chemical bonding, and interlayer contamination, all of which can shift measured resistance by an order of magnitude from theoretical predictions.
Which measurement technique should I use for a thin-film interface? TDTR and FDTR are the standard choices for thin-film and nanoscale interfaces, with 3-omega better suited to bulk or thicker film samples, and thermal bridge or electron-beam methods reserved for individual nanostructures.
