Aerogel Insulation Modeling: A Multiscale Method Guide
- Jewlz Technologies
- 11 minutes ago
- 18 min read
Model silica aerogel thermal performance by coupling nanoscale gas-conduction physics with continuum-scale heat transfer, not by treating either alone as sufficient. Use Knudsen-corrected or molecular-dynamics-derived gas conductivity as an input parameter, then upscale that number into a finite-element or homogenization model built on a real or statistically reconstructed microstructure. Validate the result against steady-state measurements and report uncertainty, not a single number.
That’s the short version. The longer version depends on what you’re actually trying to predict.
Use molecular dynamics or kinetic (Knudsen) models when you need the effective gas-phase conductivity at a specific pore size, pressure, or gas composition, and no reliable experimental value exists for that condition.
Use continuum FEM or homogenization when you already have (or can compute) effective-medium properties and need component-scale temperature fields, thermal bridging effects, or coupled radiation/convection behavior.
Combine both when the application spans pressure or temperature ranges wide enough that a single averaged conductivity value breaks down, which is common in cryogenic and vacuum-adjacent designs.
One caution before any of that: a huge share of the aerogel conductivity numbers circulating in journals and datasheets are wrong. A 2023 analysis of aerogel thermal conductivity data across 87 papers found values that violate physical bounds, with transient hot-disk measurements as a repeat offender. Whatever model you build, its credibility rests on what you validate it against. Treat uncertainty quantification as part of the modeling task, not an optional appendix.
Key Takeaways
Reliable aerogel insulation modeling depends on coupling nanoscale gas-conduction corrections with continuum-scale solvers and validating every prediction against steady-state measurement data with quantified uncertainty.
Point | Details |
Match method to scale | Use MD or kinetic corrections for nanoscale gas conductivity, then upscale into FEM or homogenization for component predictions. |
Distrust transient measurements alone | Cross-validate hot-disk readings against steady-state data given the documented reliability issues in published values. |
Quantify uncertainty, don’t just calibrate | Run global sensitivity analysis before Bayesian/MCMC calibration to focus compute on the parameters that actually matter. |
Account for temperature and moisture | Build temperature-dependent property tables and moisture-content corrections into the model rather than assuming dry, room-temperature constants. |
Use a scriptable continuum solver | Jewlztech’s Excel-based engineering toolkit handles coupled conduction, convection, and radiation with a built-in property database for the continuum layer of this workflow. |
Table of Contents
Heat Transfer Mechanisms in Silica Aerogels
Aerogel thermal insulation performance comes from three transport channels running in parallel, and a model that ignores any one of them will misfire under the wrong conditions. Solid-phase conduction, gas-phase conduction, and thermal radiation each dominate in a different regime, and the crossover points are where most naive models break.
Solid-skeleton conduction moves heat through the nanoparticle network that makes up the aerogel backbone. This pathway is inherently inefficient because the network is highly tortuous. Heat has to travel along a chain of point contacts between nanoparticles just a few nanometers wide, and each contact acts as a constriction resistance. Modeling this piece well means representing network connectivity (coordination number, necking geometry at particle junctions) rather than assuming a bulk silica conductivity scaled by density. Silica’s intrinsic conductivity is around 1.4 W/m·K, yet the effective solid-phase contribution in an aerogel can be two to three orders of magnitude lower once tortuosity and contact resistance are accounted for.
Gas-phase conduction is where aerogels earn their reputation, and where models most often go wrong. Air trapped in a bulk cavity conducts heat
well-known kinetic theory. Air trapped in a pore smaller than the gas molecule’s mean free path (roughly 70 nanometers at atmospheric pressure) behaves differently: molecules collide with pore walls more often than with each other, which suppresses conduction. This is the Knudsen effect, and it’s the reason aerogels with pore diameters in the 10 to 50 nanometer range dramatically outperform conventional foam insulation despite being mostly air by volume. A recent critical review of gas and solid conduction models lays out the Knudsen-corrected formulations you need instead of a plain ideal-gas conductivity term, and it’s a foundational reference if you’re building this into a solver from scratch.
Radiation becomes significant at higher temperatures and in low-density, more transparent aerogel formulations. Silica aerogels are semi-transparent in parts of the infrared spectrum, so radiative transfer isn’t always negligible even at moderate operating temperatures, and it becomes a first-order effect above roughly 400°C or in applications with a large view factor to a hot surface.
The dominant regime shifts with a handful of structural and environmental variables:
Porosity and pore-size distribution set where the Knudsen crossover happens and how steep it is.
Ambient pressure directly changes the mean free path, which is why the same aerogel performs differently at atmospheric pressure versus in a partial vacuum.
Bulk density trades off solid-phase conduction against gas-phase suppression, and there’s an optimal density band for a given application, not a “lower is always better” rule.
Temperature shifts both gas mean free path and the radiative contribution simultaneously, which is one reason single-temperature conductivity values get misapplied.
A review of heat transfer modeling in nanoporous silica aerogels makes the point that accurate 3D structural data remains the main bottleneck for predictive simulation, more than any weakness in the governing equations themselves. If your microstructure input is a guess, your model output is a guess with better math attached.
Pro Tip: Before writing a single line of solver code, sketch which of the three mechanisms dominates for your specific pressure, temperature, and density combination. Half the modeling errors we see come from applying a gas-conduction correction that was calibrated for a different pore-size regime.
Which Modeling Approach Fits Your Aerogel Problem?
Four broad families of models cover aerogel thermal simulation, and they operate at different scales with different data demands. Picking the wrong one for your question wastes compute time and, worse, produces numbers that look precise but aren’t accurate.
Effective-medium theory (EMT) and homogenization models treat the aerogel as a continuous material with averaged properties derived analytically or semi-analytically from porosity, particle size, and known conduction mechanisms. These models are fast, require minimal computational resources, and work well for scoping calculations or when you need to iterate quickly over many design variants. Their weakness is that they assume idealized, often isotropic microstructures, so accuracy degrades for aerogels with strong density gradients, fiber reinforcement, or anisotropic pore networks.
Finite element method (FEM) with conjugate heat transfer builds an explicit mesh, either of a representative microstructure or of a component geometry using homogenized properties, and solves the coupled conduction, convection, and radiation equations numerically. This is where component-level predictions happen: thermal bridges at fasteners, temperature gradients across a panel, transient response to a changing boundary condition. The mesh has to respect the actual porous structure if you’re resolving it directly, which means voxel-based meshes derived from imaging data rather than simplified idealized geometry. A validated example: one microstructurally informed FEM study on polyimide nanofiber aerogel achieved an average prediction error of just 1.45% against experimental samples, which is a strong argument for investing in realistic geometry over a simplified continuum assumption.
Molecular dynamics (MD) and kinetic/Knudsen models operate at the nanoscale and deliver parameters that continuum models can’t derive on their own: effective gas conductivity as a function of pore size and pressure, slip coefficients at solid-gas boundaries, and detailed phonon transport behavior in the silica network. MD is computationally expensive, often limited to nanosecond timescales and domains of a few thousand atoms, so it’s not a tool for predicting a whole insulation panel. It’s a tool for generating the effective parameters that feed into something faster.
Hybrid multiscale coupling is where most credible aerogel models actually live. You run MD or kinetic-theory calculations once (or across a parameter sweep) to generate effective gas conductivity and slip coefficients, then pass those numbers into a continuum FEM or homogenization model as material properties. This is a one-way coupling in most practical workflows: nanoscale informs continuum, but continuum results rarely need to feed back down to the MD scale unless you’re studying something unusual like structural degradation under thermal cycling.
A related hierarchical approach reconstructs the actual nanostructured silica network from imaging data and runs microscopic simulations that feed directly into mesoscopic and component-scale models. Hierarchical modeling work on aerogel-inclusion plasters demonstrated this microscopic-to-mesoscopic-to-component pipeline matched experimental conductivity data once rarefaction and nanoscale effects were properly included, reinforcing that the payoff for multiscale rigor is real, not academic.
Pro Tip: Don’t run MD for every design iteration. Generate a lookup table or a simple correlation for effective gas conductivity across the pore-size and pressure range you care about once, then reuse it across your continuum sweeps. It saves weeks of compute time and rarely costs meaningful accuracy.
For coupling solid and fluid domains cleanly in your FEM solver, the setup principles in a standard conjugate heat transfer guide translate directly to aerogel component modeling, particularly around interface boundary conditions between the porous solid and any adjacent air gaps or convective surfaces.
Building the Multiscale Workflow: From Imaging to Component Model
Getting from a real aerogel sample to a validated component-scale prediction is a five-stage pipeline, and skipping a stage is usually where projects lose months later trying to figure out why the model doesn’t match test data.
Image the microstructure. Scanning electron microscopy (SEM) gives you 2D surface detail at nanometer resolution; micro-computed tomography (µCT) gives you 3D volumetric data but typically can’t resolve features below a few hundred nanometers, which is a real limitation for the finest aerogel pore structures. Where direct imaging can’t resolve the relevant scale, statistical reconstruction methods generate synthetic microstructures matched to known porosity and correlation-length statistics from smaller-scale characterization.
Define a representative volume element (RVE). The RVE has to be large enough that its effective properties don’t change meaningfully if you make it bigger, and small enough to stay computationally tractable. Run an RVE size convergence study: compute effective conductivity at increasing RVE dimensions and confirm the value plateaus within your target tolerance before locking in a size.
Apply boundary conditions and homogenize. Standard approaches include periodic boundary conditions for a bulk-like sample or fixed-temperature boundaries for a directional flux calculation. The output is an effective conductivity tensor, which for most aerogels is close to isotropic but shouldn’t be assumed so without checking, especially for fiber-reinforced or directionally processed formulations.
Transfer nanoscale parameters upward. This is the connective tissue between MD/kinetic results and your continuum model: effective gas-phase conductivity as a function of local pore size, slip coefficients at solid-gas interfaces, and any temperature-dependent adjustments to the solid backbone conductivity. Package these as lookup tables or fitted correlations, not single point values, so the continuum solver can interpolate across the operating range.
Build and run the component-scale model. With homogenized properties in hand, mesh the actual component geometry and solve for the coupled heat transfer modes relevant to your application. This is the stage where a heat transfer modeling framework that handles conduction, convection, and radiation simultaneously earns its keep, since aerogel components rarely experience just one mode in isolation.
Before trusting any output, run through a short verification checklist:
Confirm mesh convergence by refining the FEM mesh until the predicted temperature or flux changes by less than your target tolerance.
Confirm RVE size convergence separately from mesh convergence. These are different sources of numerical error and get conflated too often.
Cross-check the homogenized effective conductivity against a simple analytical bound (parallel and series resistance limits at minimum) to catch gross errors before investing in full validation testing.
Compare against at least one independent measurement before calling the model production-ready.
Uncertainty Quantification and Validation That Holds Up
A single conductivity prediction without an uncertainty band is a guess dressed up in decimal places. Given how much variability exists in aerogel formulation, density, and processing, a defensible model needs a UQ workflow, not just a validated point estimate.
Start with global sensitivity analysis (GSA). Before calibrating anything, identify which input parameters actually move your quantity of interest. For most aerogel models this shortlist includes porosity, mean pore diameter, solid-phase contact resistance, and ambient pressure. GSA methods like Sobol indices or Morris screening let you rank parameter influence without needing experimental data yet, which means you can do this early and cheaply.
Calibrate against data with Bayesian inference. Rather than tuning parameters by hand until the model matches a test result, Bayesian calibration treats the influential parameters as random variables with prior distributions, then uses Markov Chain Monte Carlo (MCMC) sampling to update those distributions based on experimental measurements. The output is a posterior distribution for each parameter, not a single best-fit value, which is exactly what you want when your measurement data itself carries uncertainty. A demonstrated UQ framework for multiphase silica aerogel models used this GSA-to-MCMC pipeline with a mixed finite element solver to characterize an aerogel thermal break, explicitly separating measurement uncertainty from model-form inadequacy. That distinction matters because it tells you whether a bad prediction is a data problem or a physics problem.
Propagate uncertainty forward to your actual quantity of interest. Once you have calibrated parameter distributions, run forward simulations sampling across that posterior to get a distribution on your output, whether that’s effective conductivity, peak temperature, or heat flux through a panel. Present results as a credible interval, not a bare mean.
Report predictions with a stated confidence interval, never a single decimal number implying false precision.
Separate measurement uncertainty (instrument error, sample variability) from model-form uncertainty (assumptions baked into the governing equations) wherever your framework allows it.
Flag which input parameters your GSA identified as dominant, since that tells reviewers where future measurement effort should go.
Full MCMC sampling across a high-fidelity FEM model gets expensive fast, often prohibitively so for design iteration. Building a surrogate model, a polynomial response surface, Gaussian process, or reduced-order model trained on a modest set of full simulations, lets you run the thousands of samples MCMC needs in a fraction of the time. This trades a small amount of surrogate fitting error for a large computational savings, and for most practical engineering timelines it’s the only way UQ gets done at all.
Pro Tip: Run your GSA before you design your experimental measurement campaign, not after. If pore-size distribution turns out to dominate your sensitivity ranking, that’s the parameter you need the tightest experimental characterization on, not an afterthought measurement you tack on at the end.
Also worth including in the parameter set beyond pure thermal conductivity: thermomechanical behavior. Aerogels have notably low mechanical strength, and geometry-dependent thermal bridges from fasteners, compressive loading, or structural settling can shift real-world performance away from the idealized thermal-only prediction.
Where Jewlztech’s Toolkit Fits in the Modeling Pipeline
Most engineering teams don’t have a dedicated MD group and a dedicated FEM group sitting next to each other. What you usually have is one or two engineers who need to go from a microstructure characterization to a defensible component-scale prediction without spinning up three separate software licenses.
The practical toolchain breaks into three functional layers, regardless of which specific software you use for each:
Microstructure processing, taking SEM or µCT image stacks and converting them into voxel-based geometry or statistically equivalent reconstructions the solver can mesh.
Nanoscale/kinetic parameter generation, either from MD runs or from applying Knudsen-corrected kinetic theory formulas directly, producing effective gas conductivity and slip coefficient tables across your operating pressure and pore-size range.
Continuum solving, a solver that handles conduction, convection, and radiation together, accepts temperature-dependent and spatially varying material properties, and supports scripting so you can automate parameter sweeps and UQ sampling instead of clicking through a GUI thousands of times.
Jewlztech’s engineering toolkit is built specifically for that third layer. It handles coupled conduction, convection, and radiation analysis with variable material properties across a wide temperature range, backed by a built-in property database so you’re not hand-entering silica or gas-phase constants for every run. Because it’s delivered as a downloadable Excel-based tool, it fits naturally into the kind of parameter-sweep, script-driven workflow that Bayesian calibration and forward uncertainty propagation both demand, without forcing you to learn a new proprietary scripting language first.
For the radiative side specifically, a dedicated thermal radiation calculation reference walks through the formulas you’d otherwise have to derive from scratch when radiative transfer becomes non-negligible in higher-temperature aerogel applications. And where your application involves reduced pressure environments, whether that’s a vacuum-adjacent enclosure or a cryogenic system, the gas-phase conduction physics shift enough that a vacuum insulation panel simulation approach and the pressure-sensitive considerations in a cryogenic heat transfer reference both become directly relevant.
Pro Tip: If you’re feeding MD-derived effective conductivity tables into a continuum solver, build the interpolation into your property database as a temperature and pressure-dependent lookup rather than a single averaged value. It’s a small setup cost that pays off the moment your operating envelope spans more than a narrow band.
Measurement Methods and Data-Quality Practices for Model Validation
No model earns credibility from equations alone. It earns credibility from what it’s checked against, and aerogel conductivity measurements have a documented reliability problem.
Steady-state methods (guarded hot plate, heat flow meter) apply a constant thermal gradient and measure conductivity once equilibrium is reached. They’re slower to run but produce results that are far more trustworthy for aerogels, and should be your default choice for validation data whenever schedule allows.
Transient methods, hot-disk chief among them, measure a time-dependent temperature response and back-calculate conductivity from it. They’re fast and convenient, which is exactly why they’re widely used and why so much bad data exists in the aerogel literature. A 2023 analysis compiling 519 results across 87 papers found many reported values fall outside physically plausible bounds, with hot-disk measurements identified as a recurring source of implausible, artificially low readings on nanoporous materials.
Cross-validate any transient reading against a steady-state measurement, or at minimum against a calibration material with known conductivity, before trusting it for model validation.

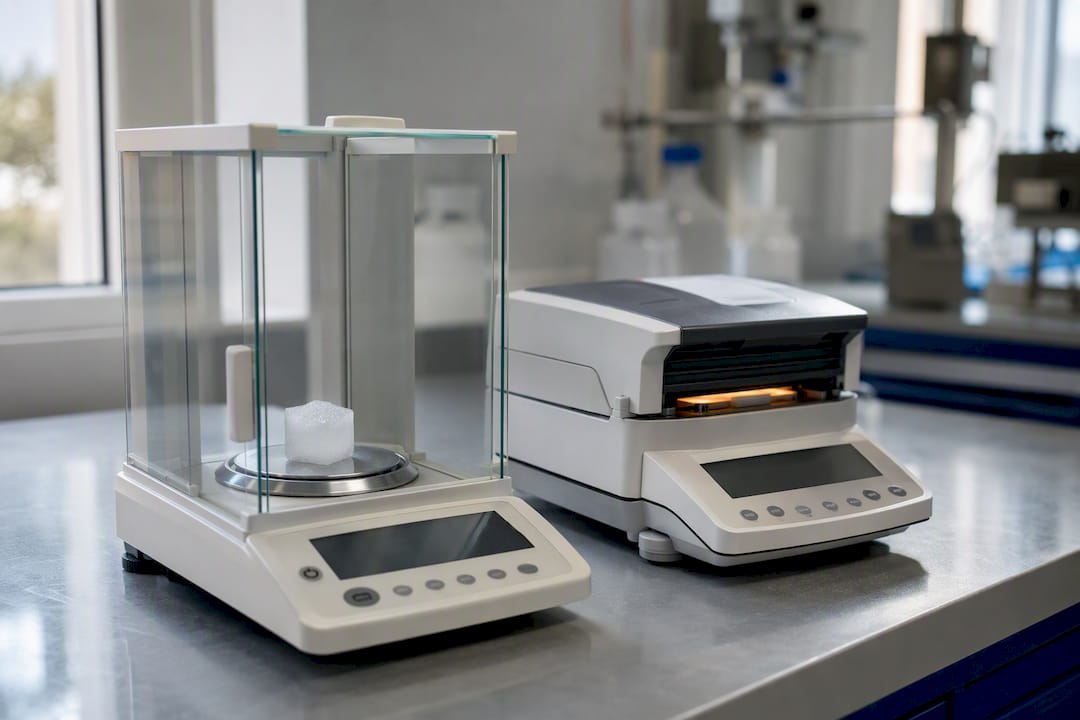

Report full sample preparation and conditioning details, including moisture content and density, since both shift measured conductivity independent of the material’s intrinsic performance.
State instrument calibration status and measurement uncertainty explicitly, not as an afterthought footnote.
Commission independent lab testing when the model output is feeding a design decision with real cost or safety consequences, rather than relying solely on manufacturer-reported values.
How Do You Model Radiative Transfer in Silica Aerogels?
Radiative heat transfer in silica aerogels needs more care than a simple gray-body assumption, because aerogels are semi-transparent across parts of the infrared spectrum rather than fully opaque or fully transparent. That spectral behavior means the extinction coefficient, how strongly the material absorbs and scatters radiation, varies with wavelength, and a model using a single averaged value will misjudge performance at the temperature extremes where radiation matters most.
The Rosseland diffusion approximation is a common simplification for optically thick aerogel samples: it treats radiative transfer as an additional diffusive conductivity term, which integrates cleanly into an existing conduction-dominated FEM solver without needing a full radiative transport equation solve. It breaks down for thin samples or where the aerogel is optically less dense, where a discrete ordinates method or a two-flux model captures the spectral and directional behavior more accurately at higher computational cost.
Practically, this means your radiative model choice should track your application. A thin aerogel blanket at moderate temperature can often get away with the diffusion approximation. A thick aerogel component operating above 400°C, or one where accurate spectral response genuinely drives the design decision, justifies the added cost of a spectral or multi-band radiative solver. The thermal radiation calculation formulas covering view factors and emissivity-weighted flux give you the building blocks either way.
Do Aerogel Thermal Properties Change with Temperature?
Yes, and treating conductivity as a fixed constant across an operating range is one of the more common modeling shortcuts that quietly produces wrong answers. Solid-phase conductivity in the silica backbone shifts with temperature through phonon transport behavior. Gas-phase conductivity shifts because the mean free path of air molecules changes with temperature, which moves the Knudsen effect’s crossover point. Radiative contribution scales with temperature to the fourth power in the underlying physics, so its relative importance grows sharply at higher operating temperatures even if it was negligible at room temperature.
The practical fix is building temperature-dependent property tables into your model rather than single-point values pulled from a datasheet measured at 25°C. Most continuum solvers, including a scripting-capable toolkit with a built-in property database, support piecewise or polynomial temperature-dependent inputs for exactly this reason. Feed in conductivity as a function of temperature across your actual operating envelope, not just at the reference condition the original measurement happened to use.
This matters most for applications spanning a wide temperature swing, cryogenic-to-ambient transitions, or high-temperature industrial insulation where the material sees several hundred degrees of gradient across its thickness. Ignoring temperature dependence in those cases doesn’t just add noise to your prediction. It can shift which transport mechanism dominates at different points through the material’s cross-section.
How Does Moisture Absorption Affect Aerogel Insulation Performance?

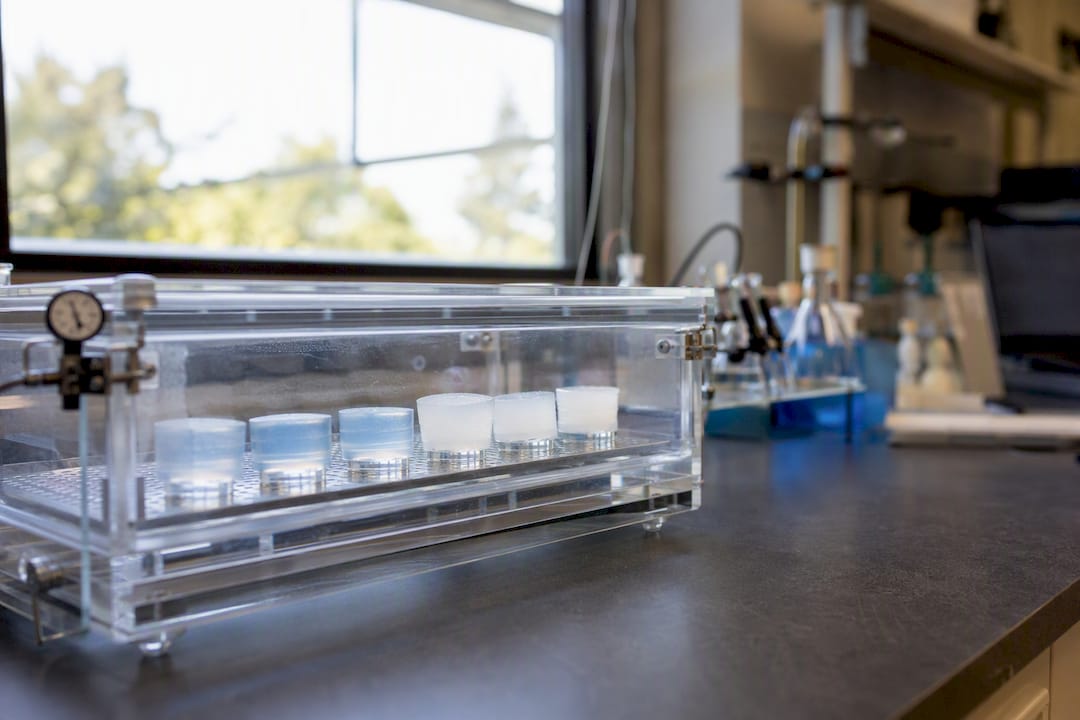

Moisture is one of the fastest ways to degrade an aerogel’s insulating performance, because water has a thermal conductivity roughly 25 times higher than the still air that would otherwise occupy the pore network. Even a modest amount of absorbed moisture fills pore volume that was doing useful Knudsen-suppression work, and conductivity rises accordingly. Hydrophobic silica aerogel formulations exist specifically to resist this, but no formulation is fully immune under sustained high-humidity exposure or direct water contact.
Modeling this effect means treating moisture content as an additional state variable rather than assuming a dry-material baseline holds throughout service life. A practical approach adds an effective-medium correction that blends the dry aerogel’s conductivity with water’s conductivity, weighted by measured or estimated moisture fraction, then reruns the effective-medium or FEM calculation at that adjusted composition. For applications where humidity exposure is a genuine design variable, building a moisture-content sweep into your parameter space, alongside your temperature and pressure sweeps, catches performance degradation before it shows up as a field failure.
Reporting matters just as much here as modeling. Any experimental validation dataset needs its sample conditioning and moisture content stated explicitly, since a sample measured after humid storage and one measured bone-dry will produce meaningfully different conductivity values for the identical formulation.
Integrating Aerogel Models into Building and Device-Scale Simulations
A validated component-level aerogel model is only useful once it plugs into the larger system it’s actually part of, a building envelope, an electronics enclosure, a cryogenic tank. That integration step is where a lot of otherwise-good material models lose accuracy, because the surrounding boundary conditions get oversimplified.
For building-scale simulation, the aerogel layer typically enters as an effective conductivity (or a temperature-dependent table, per the property discussion above) inside a multilayer wall or roof assembly model. The key integration risk is thermal bridging at fasteners, seams, and structural penetrations, which can undercut the aerogel’s bulk performance advantage if the whole-assembly model treats the insulation layer as uniform when it isn’t. Standard building energy simulation tools handle multilayer assemblies well; the aerogel-specific work is making sure the effective property fed into that layer reflects your actual density, moisture state, and operating temperature range rather than a manufacturer’s single reference-condition value.
For device-scale simulation, electronics enclosures, battery thermal management, aerospace components, the geometry is usually complex enough that a full conjugate heat transfer approach, solving conduction through the aerogel alongside convection and radiation at adjacent surfaces simultaneously, is worth the added solver complexity. This is where a scripting-capable continuum solver with a built-in property library earns its place: you can parametrize the aerogel layer’s properties once, then run the full assembly or device model across your design variants without rebuilding material definitions each time.
What Software Tools Handle Aerogel-Specific Modeling Well?
No single software package covers the full nanoscale-to-component pipeline, so realistic aerogel workflows generally combine tools from at least two categories, and knowing each category’s strengths keeps you from forcing one tool to do a job it wasn’t built for.
General-purpose MD packages handle the nanoscale gas-conduction and phonon-transport calculations, but they demand serious computational resources and a genuine background in molecular simulation to set up correctly, and they output parameters, not component-scale predictions. General-purpose FEM and CFD platforms handle the continuum and conjugate heat transfer scale well, and most support user-defined property scripting, but they don’t natively generate the Knudsen-corrected gas conductivity inputs an aerogel model actually needs. You still have to derive or import those.
Purpose-built engineering toolkits sit in a useful middle ground for teams that need coupled conduction, convection, and radiation analysis without standing up a full MD and CFD stack in parallel. Jewlztech’s toolkit, delivered as a downloadable Excel-based engineering tool, covers this continuum layer with variable material properties across a wide temperature range and a built-in property database, which removes a real setup bottleneck for teams whose core need is fast, scriptable component-scale prediction rather than nanoscale parameter generation from first principles. Its limitation, shared by any tool at this layer, is that it still needs correct effective gas-phase and radiative inputs supplied from either literature values, MD results, or kinetic-theory calculations, since no continuum tool derives those from raw microstructure alone.
Benchmark Cases and Datasets for Validating Your Model
A model that only gets checked against your own single test sample is a model nobody else can verify. Benchmark against published cases whenever they exist, and be honest about how thin that benchmark landscape currently is for aerogels specifically.
The polyimide nanofiber aerogel FEM study is one of the stronger published benchmarks available, with a documented microstructure, a stated 1.45% average prediction error against experiment, and enough methodological detail to reproduce the setup. The hierarchical plaster modeling study offers a second useful comparison point, particularly for anyone modeling aerogel-inclusion composite systems rather than pure aerogel samples. The multiphase aerogel UQ framework doubles as a benchmark for the calibration workflow itself, not just the thermal prediction.
Beyond these specific papers, no industry-standard, universally adopted benchmark dataset for aerogel thermal conductivity currently exists the way there is for, say, standard reference materials in conventional insulation testing. That gap is precisely why the data reliability analysis matters as a screening reference: before adopting any third-party dataset as a validation target, check whether its measurement method and reported values fall within the physically plausible ranges that analysis lays out.
What Would You Check First on a New Aerogel Batch?
Density and pore-size distribution, before anything else touches a solver. Most modeling failures I’ve seen trace back to an assumed microstructure that didn’t match the actual batch, not a flawed governing equation. If you only have budget for one characterization step before building a model, make it that one.
After that, my priority order is short: confirm moisture content and conditioning history, run a steady-state conductivity check even if you eventually want faster transient data, then do the GSA before touching MCMC. Skipping straight to Bayesian calibration without first knowing which parameters actually matter wastes compute cycles on precision you don’t need.
Jewlztech builds thermal simulation and CFD tools specifically because this sequencing problem, jumping to sophisticated modeling before nailing basic characterization, is where projects lose the most time and money.
— Joel
Put the Workflow into Practice with Jewlztech’s Toolkit
Everything in this workflow, from temperature-dependent property tables to coupled conduction-convection-radiation solving, needs a solver that doesn’t force you to choose between fidelity and speed. That’s the specific gap Jewlztech’s engineering toolkit fills: a downloadable, Excel-based tool with variable material properties, a wide temperature range, and a built-in property database, so you can go from your homogenized aerogel parameters to a component-scale prediction without standing up a separate FEM license just to run the continuum layer.
If your application involves reduced-pressure or cryogenic environments where gas-phase conduction physics shift significantly, the cryogenic pressure vessel simulator handles that regime directly. And where the geometry involves genuinely coupled fluid flow alongside conduction, the CFD simulation software extends the same workflow into full conjugate analysis.
None of this replaces independent measurement. Whatever toolkit you use, validate the final model against steady-state test data before calling it production-ready. Try the toolkit on your next aerogel component model and see how the property database and scripting support fit into the parameter-sweep workflow described above.
