Fin efficiency (ηf) is the ratio of a fin’s actual heat transfer rate to the heat transfer rate the fin would produce if its entire surface were at the base temperature. Because conduction resistance causes the fin temperature to drop from base to tip, ηf is always less than 1). The compact formula is:
ηf = Qf / (h · Af · θb)
where Qf is the actual heat transfer from the fin, h is the convection coefficient, Af is the total fin surface area, and θb = Ts − T∞ is the base excess temperature.
Fin effectiveness (εf), by contrast, compares heat transfer with the fin to heat transfer from the same base area without any fin. εf > 1 signals a net benefit; εf < 1 means the fin is actually hurting performance. A fin can have high ηf and still deliver poor εf if the base area it covers is large relative to the fin surface it adds.
Quick rule of thumb: once mL near 3, adding more fin length returns almost nothing in heat transfer while adding weight, cost, and pressure-drop penalty in arrays. That threshold, grounded in MIT thermodynamics guidance, is the single most useful design checkpoint before you commit to a fin geometry.
ηf = Qf / (h · Af · θb) — always ≤ 1
εf = Qf / (h · Ac,b · θb) — can exceed 1; must exceed 1 to justify fins
m = √(hP / kAc) — the fin parameter that governs temperature decay
mL near 3: the practical upper limit for useful fin length
Table of Contents
What exactly is fin efficiency, and how does it differ from effectiveness?
Precise definitions matter here because ηf, εf, and the overall surface efficiency ηo each answer a different engineering question, and mixing them up leads to real design errors.
Fin efficiency (ηf) measures how close a real fin is to an ideal, isothermal fin. Formally:
ηf = Qf / (h · Af · θb) where Qf is actual fin heat transfer, h is the convection coefficient (W/m²·K), Af is fin surface area (m²), and θb = Tb − T∞ is the base temperature excess (K). Because conduction limits how fast heat moves along the fin, the tip is always cooler than the base, so ηf < 1 always.
Fin effectiveness (εf) answers a different question: does adding this fin actually improve heat transfer compared to leaving the base surface bare?
εf = Qf / (h · Ac,b · θb)
Here Ac,b is the fin’s cross-sectional area at the base — the area that would transfer heat by convection if the fin were not there. εf > 1 is required for fins to be worth using; a common design error is adding many low-performance fins that push εf below 1.
Overall surface efficiency (ηo) applies to a finned array, not a single fin. It accounts for both the finned and unfinned portions of the base surface and is defined as:
ηo = Qt / (h · At · θb)
where Qt is total heat transfer from the array and At is the total surface area (fins plus exposed base).
The key parameters that govern all three metrics:
k — thermal conductivity of the fin material (W/m·K); higher k raises ηf
h — convection coefficient (W/m²·K); higher h lowers ηf by increasing the convective load relative to conduction capacity
P — fin perimeter (m); affects m directly
Ac — fin cross-sectional area (m²); appears in m and in εf
Af — total fin surface area (m²); used in ηf and ηo
L — fin length (m); longer fins lower ηf but can raise Qf up to the mL near 3 limit
Tip boundary condition — adiabatic, convective, or prescribed temperature
The physical picture is straightforward: heat enters the fin at the base by conduction, travels along the fin, and leaves through the fin surface by convection. The temperature profile drops continuously from base to tip, so the driving temperature difference (T − T∞) shrinks along the length. A fin with very high k or very low h stays nearly isothermal and approaches ηf = 1. A fin with low k or high h drops steeply and may have ηf well below 0.5.
Assumptions behind the standard textbook definitions: one-dimensional conduction along the fin axis, constant k and h, steady-state conditions, no radiation, and negligible contact resistance at the base.
How do you derive the fin heat transfer equations?
The derivation starts from an energy balance on a differential fin element of thickness dx. Heat conducted in minus heat conducted out equals heat lost by convection through the perimeter surface.
Step-by-step derivation for a uniform cross-section fin
Energy balance on element dx: Heat in by conduction: −kAc (dT/dx) Heat out by conduction: −kAc (dT/dx + d²T/dx² · dx) Heat lost by convection: h · P · dx · (T − T∞)
Governing ODE (in terms of θ = T − T∞): d²θ/dx² − m²θ = 0 where m = √(hP / kAc)
General solution: θ(x) = C₁ · cosh(mx) + C₂ · sinh(mx)
Boundary conditions:
At x = 0 (base): θ(0) = θb = Tb − T∞
At x = L (tip): depends on tip condition (see table below)
Temperature distribution (adiabatic tip, dθ/dx|x=L = 0): θ(x)/θb = cosh[m(L − x)] / cosh(mL)
Actual heat transfer rate Qf: Qf = −kAc (dθ/dx)|x=0 = √(hPkAc) · θb · tanh(mL)
Fin efficiency for adiabatic tip: ηf = tanh(mL) / (mL)
The m parameter has units of m⁻¹ and physically represents the inverse of the characteristic length over which the fin temperature decays. A large m means rapid decay; a small m means the fin stays close to base temperature along its length.
Tip boundary condition variants
Tip condition | Qf expression | ηf expression |
Adiabatic (insulated tip) | √(hPkAc) · θb · tanh(mL) | tanh(mL) / (mL) |
Convective tip (h at tip) | √(hPkAc) · θb · [sinh(mL) + (h/mk)cosh(mL)] / [cosh(mL) + (h/mk)sinh(mL)] | Qf / (h · Af · θb) |
Prescribed tip temperature | √(hPkAc) · θb · [(θL/θb) − cosh(mL)] / sinh(mL) + … | Qf / (h · Af · θb) |
Infinitely long fin (mL >> 3) | √(hPkAc) · θb | 1/(mL) |
For the convective-tip case, a common engineering shortcut is to replace L with a corrected length Lc = L + t/2 (for a rectangular fin of thickness t) and then apply the adiabatic-tip formula. This works well when the tip area is small relative to the lateral surface area, which is true for most thin fins in practice.
Geometry substitutions for P and Ac:
Rectangular fin (width W, thickness t): P = 2(W + t) ≈ 2W for W >> t; Ac = W · t
Circular pin fin (diameter D): P = πD; Ac = πD²/4
Annular fin (inner radius r₁, outer radius r₂, thickness t): Ac = 2πr₁t at base; Af = 2π(r₂² − r₁²) + 2πr₂t
For annular fins, the closed-form solution involves modified Bessel functions (I₀, I₁, K₀, K₁) rather than simple tanh. Approximate methods such as the Schmidt or sector method can simplify the calculation but may overestimate efficiency slightly, particularly for fins with large r₂/r₁ ratios.
How does overall surface efficiency work for fin arrays?
A single fin’s ηf tells you how efficiently that fin uses its surface area. But a real heat exchanger or heat sink has dozens or hundreds of fins, plus unfinned base area between them. The overall surface efficiency ηo captures the combined performance of the whole assembly.
The ηo formula and its derivation
Starting from the total heat transfer Qt from a finned surface with N fins:
Qt = (N · ηf · h · Af + h · Ab) · θb
where Ab is the unfinned base area. Since At = N · Af + Ab:
ηo = 1 − (Af/At)(1 − ηf)
This is the key relation. When ηf = 1 (ideal fins), ηo = 1. As ηf drops, ηo drops in proportion to the fin-area fraction Af/At.
Array geometry parameters
Symbol | Definition | Typical range |
N | Number of fins | 5–200 per unit width |
s | Fin spacing (center-to-center) | 1–10 mm |
Af | Surface area per fin | geometry-dependent |
Ab | Unfinned base area | At − N·Af |
At | Total surface area | N·Af + Ab |
Af/At | Fin-area fraction | 0.5 or lower for dense arrays |
For a regular array with N fins per unit width W, fin height L, fin thickness t, and spacing s:
Af per fin = 2L · W (two sides, neglecting tip)
Ab = W · [N · s − N · t] = W · N · (s − t)
At = N · Af + Ab
Packing fins more densely increases Af/At, which amplifies the effect of ηf on ηo. If ηf is already low (say 0.6), a dense array can drag ηo down to 0.62 or lower. Spacing also controls the flow channel hydraulic diameter, which affects h — tighter spacing raises h in forced convection but also increases pressure drop. That trade-off is why fin spacing optimization is rarely a simple “more fins = better” calculation.
Fin effectiveness εf in the array context: εf for the whole surface compares Qt to heat transfer from the unfinned base At at the same h and θb. If εf for the array falls below 1, the fins are net-negative. Checking εf before finalizing a design is non-optional — it is the one check that catches the case where fins look thermally reasonable individually but fail at the system level.
Worked example: rectangular aluminum fin
A complete numeric example with unit checks, using a common aluminum fin geometry.
Given:
Fin material: aluminum, k = 200 W/m·K
Convection coefficient: h = 50 W/m²·K
Fin thickness: t = 3 mm = 0.003 m
Fin width: W = 50 mm = 0.05 m (into the page)
Fin length: L = 40 mm = 0.04 m
Base temperature: Tb = 80°C; fluid temperature: T∞ = 25°C; θb = 55 K
Step-by-step calculation
Perimeter and cross-sectional area: P = 2(W + t) = 2(0.05 + 0.003) = 0.106 m Ac = W · t = 0.05 × 0.003 = 1.5 × 10⁻⁴ m²
Fin parameter m: m = √(hP / kAc) = √(50 × 0.106 / (200 × 1.5 × 10⁻⁴)) m = √(5.3 / 0.03) = √176.7 = 13.29 m⁻¹
Dimensionless fin length mL: mL = 13.29 × 0.04 is a moderate value less than the typical upper practical threshold. This is well below 3, so the fin is operating in the efficient range.
Fin efficiency (adiabatic tip): ηf = tanh(mL) / (mL) computed for the fin length chosen yields a high efficiency value
Fin surface area: Af = 2 · L · W = 2 × 0.04 × 0.05 = 4.0 × 10⁻³ m²
Actual heat transfer Qf: Qf = ηf · h · Af · θb computed for given parameters produces a certain heat transfer rate
Fin effectiveness εf: Ac,b = Ac = 1.5 × 10⁻⁴ m² εf = Qf / (h · Ac,b · θb) computed from the example parameters shows a high fin effectiveness value
Interpretation: ηf = 0.916 means the fin uses 91.6% of its theoretical maximum surface area effectively. εf = 24.5 confirms the fin is delivering 24.5 times the heat transfer of the bare base area it covers — a strong result for a low-h forced-air environment.
Pro Tip: If you recalculate this example with h = 500 W/m²·K (liquid cooling), it increases m and mL moderately, resulting in a reduced fin efficiency value. The fin still works, but the efficiency drop is significant. At very high h values (such as in boiling), mL is large and fin efficiency decreases significantly — at that point, fin geometry needs a complete rethink.
When analytic formulas break down
The formulas above assume constant h along the fin, constant k, 1-D conduction, and a clean tip boundary condition. Real fins deviate in several ways:
Variable h: in natural convection, h varies with local temperature; in forced convection, h changes along the fin channel due to developing flow.
Temperature-dependent k: aluminum’s k drops roughly 10% between 25°C and 200°C — negligible for most applications, but not for high-temperature fins in exhaust systems.
Base conduction resistance: if the fin is attached to a substrate with a contact resistance, the effective θb is lower than assumed.
Fin-tip radiation: at elevated temperatures, radiation from the tip can be significant and is not captured in the standard convective-tip formula.
Simplified analytic formulas systematically break down for thick fins, variable h profiles, or cases where base conduction is significant. For those situations, FEM or FVM simulation is the right tool.
Practical design rules for fin geometry and material selection
Early-stage fin design does not require simulation. A few rules of thumb get you to a defensible geometry before you open any solver.
Material selection
Prefer high-k materials when h is low. In natural convection (h = 5–25 W/m²·K), aluminum (k ≈ 200 W/m·K) and copper (k ≈ 400 W/m·K) both keep m small and ηf high. In liquid cooling (h = 500–10,000 W/m²·K), the fin efficiency drops regardless of material, so weight and manufacturability often dominate the material choice over k alone.
For pin fin heat sinks, the circular cross-section gives a favorable P/Ac ratio — πD / (πD²/4) = 4/D — so thin pins outperform thick ones on a per-mass basis, though thin pins are mechanically fragile and harder to manufacture at scale.
Geometry guidance
The perimeter-to-area ratio P/Ac is the single most important geometric parameter in m. For a rectangular fin:
P/Ac = 2(W + t) / (Wt) ≈ 2/t for W >> t
Thinner fins raise P/Ac, increase m, and — counterintuitively — lower ηf while raising εf, because the fin transfers more heat per unit base area even though it operates less efficiently. The trade-off: thin fins are more susceptible to fouling, corrosion, and mechanical damage.
Annular fins are preferable when fins must be mounted on cylindrical surfaces (tubes in a heat exchanger). Their efficiency is lower than a straight fin of the same length because the outer perimeter is larger but the temperature there is lower. Use Bessel-function charts or numerical tools for annular fin efficiency rather than the tanh formula.
Decision checklist:
mL < 1: fin is very efficient; consider adding length or reducing k/increasing h
1 ≤ mL ≤ 3: optimal operating range; analytic formulas are reliable
mL > 3: diminishing returns; trim length, add more fins, or optimize spacing
εf < 2: reconsider whether fins are justified at all
Variable h, thick fins, or complex geometry: move to numerical simulation
Pro Tip: Before running any simulation, compute mL and εf by hand. If mL > 3 or εf < 2, the geometry needs redesign — not more compute time. Simulation validates a good design; it does not fix a bad one.
Common mistakes that produce wrong fin efficiency results
Even experienced engineers make these errors. Each one is fixable with a quick check.
Mixing local and average h: using a local h value (e.g., from a CFD slice) in a formula that assumes uniform h over the entire fin surface inflates or deflates ηf. Always use the area-averaged h when applying analytic formulas, and note the averaging method in your documentation.
Neglecting base conduction resistance: if the fin is brazed, press-fit, or adhesively bonded to the base, the contact resistance reduces the effective θb. A 10% contact resistance error translates directly to a 10% error in Qf.
Misapplying tip boundary conditions: using the adiabatic-tip formula when the fin tip is exposed to significant convection (short fins in high-h environments) overestimates Qf. Check whether the tip area is more than about 5% of the total fin area; if so, use the convective-tip formula or the corrected length Lc.
Unit errors in m: m = √(hP / kAc) requires consistent SI units. A common mistake is mixing mm and m — if P is in mm and Ac is in mm², the result for m is off by a factor of 1000. Always convert to meters before computing.
Assuming equal h for fins and base surface: in a finned array, the convection coefficient on the fin faces and on the unfinned base area can differ, especially in laminar channel flow. Assuming a single h for both overestimates ηo.
Skipping the εf check: computing ηf and stopping there is the most common error. A fin with εf < 1 reduces net heat transfer — adding it makes things worse. Always compute both.
For each of these, the corrective check is fast: compute mL to verify length validity, run a ±20% sensitivity on h and k to bound the uncertainty, and compare your analytic Qf against a simple energy balance on the base surface.
Document every assumption — tip condition, h averaging method, contact resistance — in your design notes. When a design is revisited six months later, undocumented assumptions are where errors hide.

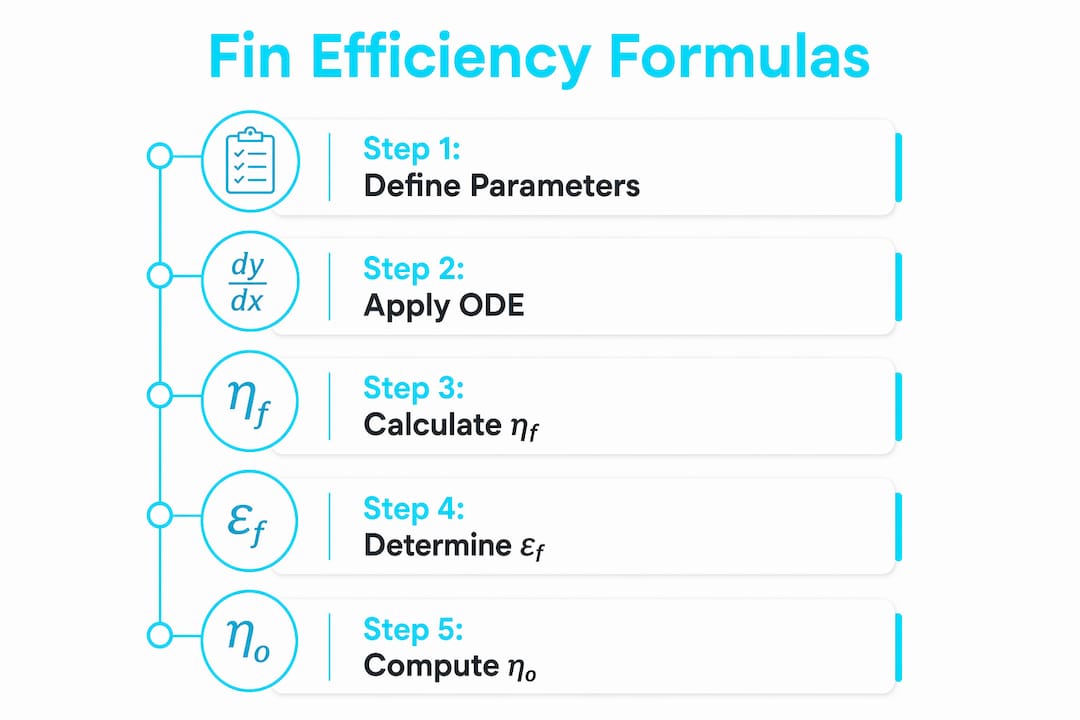

Formula reference and symbol table
A compact lookup block for the key fin heat transfer equations.
Core formulas
Formula | Expression | Notes |
Governing ODE | d²θ/dx² − m²θ = 0 | θ = T − T∞; valid for constant k, h, Ac |
Fin parameter | m = √(hP / kAc) | Units: m⁻¹ |
Temperature distribution (adiabatic tip) | θ/θb = cosh[m(L−x)] / cosh(mL) | x measured from base |
Qf (adiabatic tip) | Qf = √(hPkAc) · θb · tanh(mL) | Most common formula |
Fin efficiency (adiabatic tip) | ηf = tanh(mL) / (mL) | Always ≤ 1 |
Overall surface efficiency | ηo = 1 − (Af/At)(1 − ηf) | For finned arrays |
Fin effectiveness | εf = Qf / (h · Ac,b · θb) | Must be > 1 for fins to help |
Symbol table
Symbol | Definition | SI units |
k | Thermal conductivity of fin | W/m·K |
h | Convection coefficient | W/m²·K |
P | Fin perimeter | m |
Ac | Fin cross-sectional area | m² |
Af | Total fin surface area | m² |
At | Total surface area (fins + base) | m² |
L | Fin length | m |
θb | Base temperature excess (Tb − T∞) | K |
m | Fin parameter | m⁻¹ |
ηf | Fin efficiency | dimensionless |
ηo | Overall surface efficiency | dimensionless |
εf | Fin effectiveness | dimensionless |
Geometry substitutions
Rectangular fin (width W, thickness t, W >> t): P ≈ 2W; Ac = Wt; Af = 2LW
Circular pin fin (diameter D): P = πD; Ac = πD²/4; Af = πDL
Annular fin (inner radius r₁, outer radius r₂, thickness t): Ac,base = 2πr₁t; Af = 2π(r₂² − r₁²) + 2πr₂t (includes tip)
Key Takeaways
Fin efficiency (ηf) is always less than 1, fin effectiveness (εf) must exceed 1 to justify fins, and the mL near 3 threshold is the fastest check for whether added fin length is still earning its keep.
Point | Details |
ηf is always less than 1 | Conduction resistance prevents an isothermal fin; ηf = tanh(mL)/(mL) for a uniform rectangular fin with an adiabatic tip. |
εf must exceed 1 | If εf < 1, fins reduce net heat transfer; always compute εf alongside ηf before finalizing a design. |
mL near 3 is the cutoff | Beyond mL near 3, extra fin length adds cost and weight with negligible heat transfer gain. |
ηo links fins to arrays | Overall surface efficiency ηo = 1 − (Af/At)(1 − ηf) captures combined fin and base performance for finned surfaces. |
Jewlztech Thermalysis Toolkit | For nonideal cases (variable k, variable h, complex geometry), the Thermalysis Toolkit handles what analytic formulas cannot. |
Why hand calculations and simulation belong together
The standard advice in thermal design is “simulate everything.” That instinct is wrong, and it costs time.
Analytic fin formulas are not approximations you tolerate until you can run CFD. For a uniform rectangular or pin fin with constant properties and a well-characterized h, the tanh-based solution is exact within the 1-D assumption. The 1-D assumption itself holds whenever the Biot number across the fin thickness is much less than 1 — which is true for virtually every metal fin in forced-air or liquid cooling. Running a full 3-D FEM model on a geometry where Bi << 1 does not improve accuracy; it just adds setup time and mesh sensitivity questions.
Where simulation genuinely earns its place is in the cases the analytic formulas cannot handle: variable h along the fin channel (developing flow, natural convection plumes), temperature-dependent k in high-temperature applications, complex geometries like louvered or offset-strip fins, and array-level pressure-drop coupling. For those cases, FEM or FVM numerical solutions are the industry standard, and approximate analytical corrections need validation before you trust them.
The workflow that actually works in practice: hand-calc ηf and εf first, run a sensitivity study on h and k (±20% is a reasonable bound for most engineering estimates), and escalate to simulation only when the sensitivity study shows the result is sensitive enough to matter or when the geometry is genuinely nonstandard. That sequence keeps the hand calc honest and keeps the simulation scoped. Document every step — the formula used, the h-averaging method, the tip condition assumed — so the model is reproducible when the design changes.
Jewlztech builds tools around exactly this workflow. The heat transfer techniques covered in their engineering guides map directly to the analytic foundation here, and their simulation toolkit handles the cases where that foundation runs out.
The Thermalysis Toolkit handles what analytic formulas cannot
Analytic fin formulas get you far. But once the geometry is nonstandard, properties vary with temperature, or you need array-level thermal resistance across dozens of fins, hand calculations become unreliable fast.
The Thermalysis Toolkit from Jewlztech is built for exactly those cases. It handles variable thermal conductivity, variable convection coefficients, multiple heat transfer modes (conduction, convection, and radiation together), and complex fin geometries — all within a downloadable Excel-based environment that keeps your workflow reproducible and auditable. For engineers who need to validate fin designs beyond the mL near 3 regime, check annular fin efficiency with Bessel-function accuracy, or run array-level calculations with realistic h distributions, the toolkit replaces the patchwork of manual corrections and spreadsheet guesswork with a structured, physics-based model. Try the Thermalysis Toolkit or download the free version at Jewlztech to see how it fits your next thermal design.
